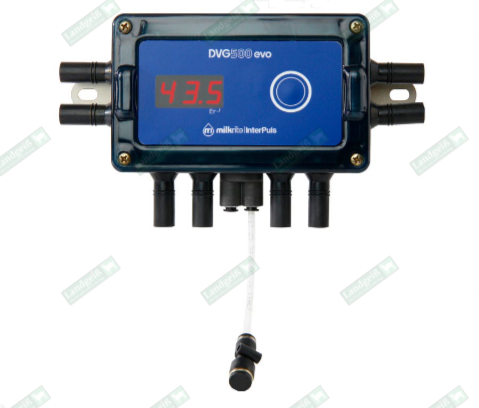

Digital vacuum clock with vacuum sensor 5109025 milkrite|InterPuls DVG 500 24 V DC

Technical data

• Power supply: 24 V DC ± 3 V
• Output signal: 4-20 mA
• Power consumption: Less than 100 mA
• Protection: Integrated surge protection

  Pressure measurement:


  • Measuring range: -100 to 0 kPa
  • Accuracy: < ±0.5 kPa
  • Resolution: 0.1 kPa
  • Additional function: Self-diagnosis


This vacuum clock is ideally suited, for example, for the IDRIVE frequency control.
